EasyGen1600

The innovative features of the easYgen-1600 Series, including ﬂexible breaker conﬁguration and start/stop logic, real an...

Product Overview

The innovative features of the easYgen-1600 Series, including ﬂexible breaker conﬁguration and start/stop logic, real and reactive power sensing, and remote-start capability make it the intelligent choice for specialized mobile power and emergency standby applications.

Key Features

✓Three-phase true RMS power sensing
✓Remote control via multiple interfaces and discrete inputs
✓Two heavy-duty relay outputs for cranking and fuel solenoid
✓Event and data logging capabilities with real time clock
✓Maintenance scheduler with multipurpose flexible timers
✓Operating hours, start, maintenance counters and monitoring
✓Can be configured from computer via USB or from front panel with password protection
✓Can be applied on pumping units as an indicating instrument (relays are inhibited)
✓Manual breaker operation with tactile buttons on front panel
✓Custom boot-up logo with adjustable screen display time
✓Multilingual customizable user interface
✓Three switchable parameter sets of AC system winding, Rated Voltage, Rated Frequency, Rated Current, Rated Power, Rated Speed
✓Direct support of several ECUs, such as Bosch, Cummins, John Deere, MTU, Perkins, Scania, Volvo, Woodward
✓Operation modes: AUTO, STOP, and MANUAL modes accessible through front panel, discrete inputs or via interfaces
✓The innovative features of the easYgen-1600 Series, including ﬂexible breaker conﬁguration and start/stop logic, real and reactive power sensing, and remote-start capability make it the intelligent choice for specialized mobile power and emergency standby applications.

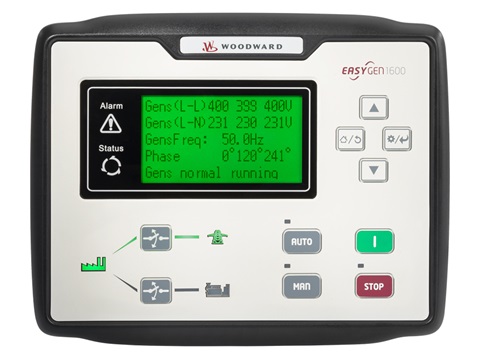

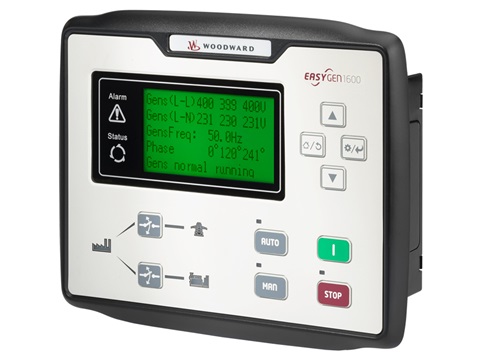

✓The Woodward easYgen-1600 series compact AMF controller contains a state of the art liquid crystal display (LCD), adequate I/Os and common industrial connectivity for a single-generator set used in critical stand-by or prime power applications with automatic changeover capability.
✓The controllers include purpose-built algorithms and logic to start, stop, control, and protect the genset, open/close circuit breakers and mains supply monitoring with automatic changeover.
✓Equipped with state-of-the-art communication interfaces, Woodward’s easYgen-1600 Series of AMF genset controllers provides exceptional versatility and value for OEM genset packagers.
