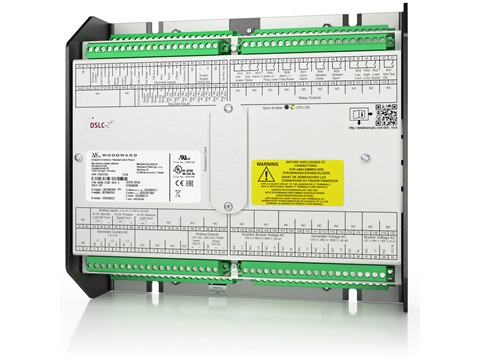

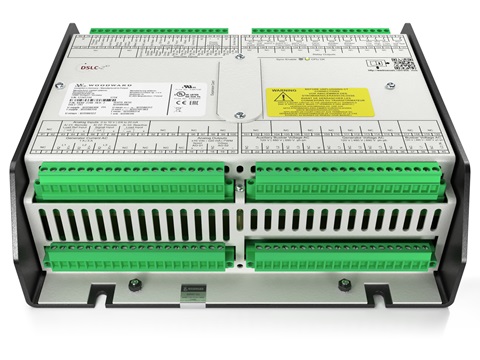

DSLC -2XT

Woodward’s DSLC-2XT™ is a microprocessor-based synchronizer and load control designed for use on three-phase AC generato...

Product Overview

Woodward’s DSLC-2XT™ is a microprocessor-based synchronizer and load control designed for use on three-phase AC generators.

Key Features

✓Dedicated Ethernet network for precise system communications between all DSLC-2XT’s and MSLC-2XT’s reduces system wiring.
✓Ethernet Modbus TCP, and Modbus RTU, for remote control and monitoring.
✓Redundant Ethernet communication for enhanced reliability.
✓The “system update” feature allows for removing or adding generator sets.
✓Back panel mounting and a reduced size frees up door space and provides easy wiring.
✓Eliminates the need for additional relay logic to control dead bus closing.
✓Three-phase true RMS power sensing makes the DSLC-2XT control accurate even with unbalanced phase loading and voltage fluctuations.
✓Phase angle correction for GCB when a transformer is included in the system.
✓The ToolKit can be accessed either via one of the Ethernet ports or via USB port.
✓Woodward offers update files should legacy DSLC-2 be mixed with the new DSLC-2XT
✓Integrated DSLC-2XT and MSLC-2XT system functionality eliminates the need for redundant sensors (like PTs, CTs, and MOPs) that connect to individual modules such as the load sensors and synchronizers.
✓The Woodward ToolKit™ software allows flexible setup using the same basic menu tree as the original DSLC-2 plus an overview screen. Graphical overview of generator and bus bar parameters with trending makes the DSLC-2XT commissioning friendly. All the Woodward devices can be programmed from a single connection to the network.
✓Slip frequency paralleling, voltage matching, and speed bias transfer between the synchronizer and load control result in smooth paralleling without the risk of reverse power trips.
✓Woodward’s DSLC-2XT™ is a microprocessor-based synchronizer and load control designed for use on three-phase AC generators.
✓The DSLC-2XT combines synchronizer, load sensor, load control, dead bus closing system, VAR, power factor, process control and hot swap redundant load share communication, all in one powerful package.
