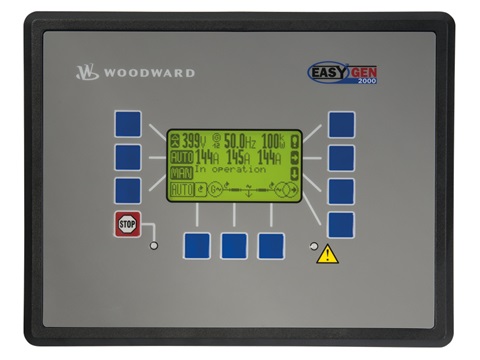

EasyGen2300

The easYgen-2300 is a compact, affordable genset control and protection package for load sharing up to 16 gensets in isl...

Product Overview

The easYgen-2300 is a compact, affordable genset control and protection package for load sharing up to 16 gensets in island operation, or parallel operation of a single unit with a utility.

Key Features

✓Operation modes: Auto, Stop, Manual, and Load/No Load test modes via discrete input possible
✓Breaker control: Slip frequency / phase matching synchronization, open-close control, breaker monitoring
✓Load transfer features: open / closed transition, interchange, soft loading / soft unloading, mains parallel
✓Remote control via interface and discrete/analog inputs for adjusting speed, frequency, voltage, power, reactive power, and power factor set points
✓Active power and reactive power load sharing with up to 16 units including load-dependent start/stop
✓Operating hours/start/maintenance counters – Operating hours also available from a connected ECU via
✓J1939/CAN
✓Supported ECU: Scania EMS/S6, Deutz EMR2, Volvo EMS2, MTU ADEC ECU7/8, Woodward EGS, MAN EDC 7, SISU EEM2/3, Cummins, Perkins and J1939 standard messages
✓Multi-lingual capability (11 languages in 1 unit configurable: English, German, French, Spanish, Chinese, Japanese, Italian, Portuguese, Turkish, Russian, Polish)
✓Event recorder (300 events, FIFO) with real time clock (battery backed; min. 5 years)
✓128×64 dot graphical interactive LC display with soft keys
✓Start/stop logic for Diesel/Gas engines
✓Engine pre-glow or purge control
✓Warm-up control via timer or coolant temperature
✓PC and/or front panel configurable (ToolKit software)
✓Multi-level password protection
✓Discrete I/O expansion board connectivity (Woodward IKD 1 or Phoenix Contact IL se)
✓CANopen for peer-to-peer load sharing
✓J1939 for engine ECU
✓Modbus RTU for PLC, HMI, and SCADA
✓Modem for remote control and programming using Woodward ToolKit software
✓The easYgen-2300 is a compact, affordable genset control and protection package for load sharing up to 16 gensets in island operation, or parallel operation of a single unit with a utility.
