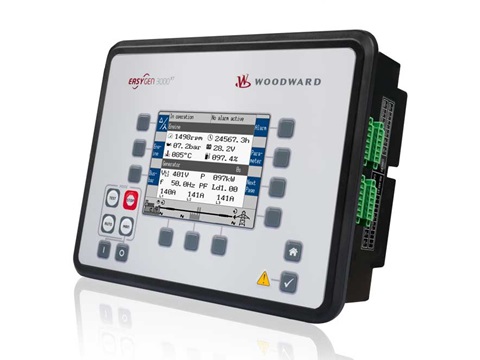

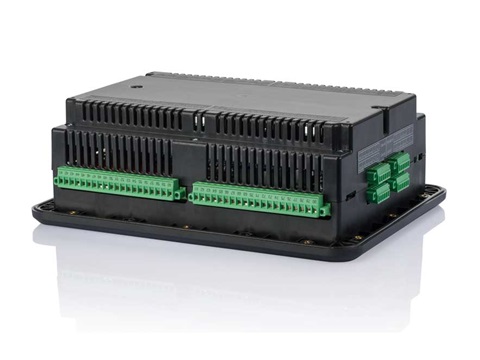

EasyGen3500XT

Product Overview

The easYgen-3500XT combines complete engine-generator control and protection with advanced, peer-to-peer paralleling functionality and innovative features in a robust, attractive and user-friendly package.

Key Features

• ✓The easYgen-3200XT combines complete engine-generator control and protection with advanced, peer-to-peer paralleling functionality and innovative features in a robust, attractive and user-friendly package.
• ✓All easYgen-3500XT Series models include these standard features:
• ✓True RMS voltage and current sensing (gen, bus and mains) for reduced susceptibility to harmonics
• ✓CAN network communication/control to engine ECU (standard SAE-J1939 protocol and several proprietary engine OEM protocols are supported)
• ✓Serial Modbus RTU (slave) communication for SCADA annunciation and external control
• ✓Configuration via PC/laptop with Woodward ToolKit service tool
• ✓Connectivity with the RP-3500XT Remote Panel for complete annunciation, control and configuration of the easYgen-3500XT controller, over CANopen protocol at up to 250m distance
• ✓Compliance agency/marine* approvals: CE, UL/cUL, CSA, BDEW, ABS, Lloyd’s Register (* see marine package for further approvals)
• ✓AMF (automatic mains failure) detection, decoupling and emergency run with dead bus close
• ✓Automatic synchronization: phase-match, positive/negative slip-frequency, run-up (dead field) paralleling
• ✓Circuit breaker close/open control: GCB only, GCB and MCB (ATS function), or external (no) control
• ✓Proportional load sharing (isochronous or droop) of up to 32 gensets, regardless of individual size
• ✓Base loading, import/export control, asymmetrical loading (through external base load input)
• ✓Automatic load dependent start/stop for improved generation system efficiency
• ✓Asynchronous (induction) generator control
• ✓Engine and generator protection functions, with fully programmable settings
