Woodward 505D

The next generation 505D front panel mount user configurable steam turbine digital governor control with advanced integr...

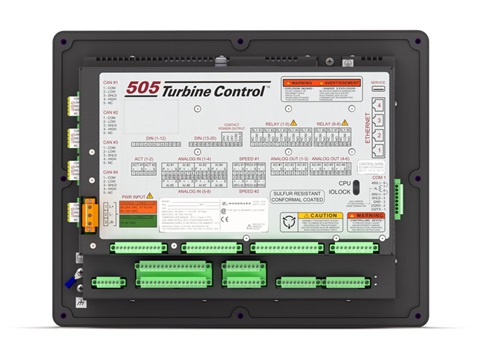

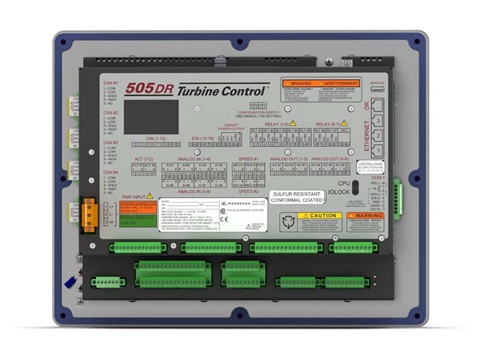

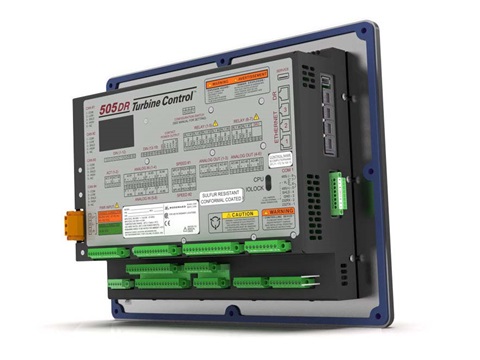

Product Overview

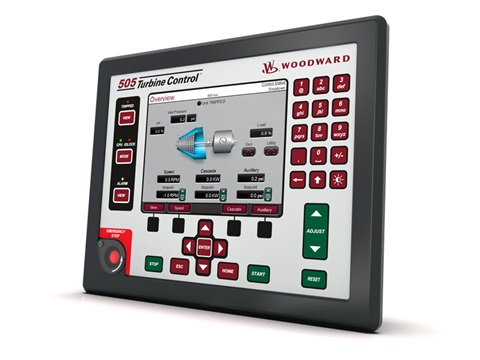

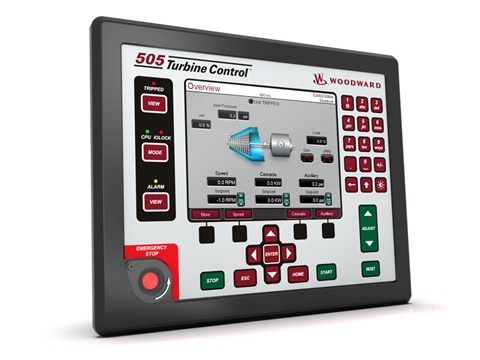

The next generation 505D front panel mount user configurable steam turbine digital governor control with advanced integrated multilingual interface HMI screen.

Key Features

✓Multilingual screens including Chinese for easier operator use, diagnosis and control
✓Large screen allows easy navigation and icon view of parameters and performance
✓Real time trending locally viewable by operators and engineers
✓Configurable tag names to easily identify connections
✓Internal “Turbine Simulator” for off-line training and advance testing before system changes
✓Ethernet communications for connectivity to plant DCS, service tools and RemoteView operator control panels
✓CANOpen actuator connectivity for Woodward VariStroke actuators and DSLC-II power management networks
✓Next generation advance load rejection performance
✓3 critical speed avoidance bands
✓Reverse rotation sensing and alarm
✓OptiTune adaptive PID technology for optimum set-up of turbine performance
✓Acceleration PID that limits overshoots for a stable and efficient plant startup
✓High speed data logs monitoring turbine operation and stress including run time and first out trip information
✓Vibration monitoring for protection and control (Sensor kit 8928-7482)
✓Cyber compliant password enabled logins
✓RemoteView (8928-5311) program enables virtual monitor and control from a remote workstation or mobile device
✓IEC61508 SIL-3 Certified
✓Cyber secure CPU
✓Achilles Level I Certification (CPU5200)
✓Simplex or redundant CPU configurations
✓VME-based (full and narrow chassis)
✓Real-time multitasking VxWorks® operating system
✓Woodward’s proven graphical application programmer (GAP) software and supporting tools
✓Deterministic update rates as fast as 5 ms
✓Improved control system availability and reliability
✓SNTP compliant for time synchronization
✓Expandable with redundant realtime network available in CAT-5 or fiber optic configurations
✓Ethernet communications
✓Simplex or dual power supplies
✓Modular I/O
✓Time stamping of events to 1 ms
✓Hot replacement of modules for online repair
✓Speed and load control
✓Temperature and process control
✓Combustion control
✓Anti-surge control
✓System sequencing and package auxiliary control
✓Rigorous load rejection performance
✓Complex DLE fuel control algorithms
✓Incipient surge detection
✓Long-term naval programs
✓Alarm + shutdown communication
✓Temperature: 0 to 55 °C (32 to 131 °F) ambient air temperature range
✓Shock: US MIL-STD-810C, method 516.2-1, procedure 1B (15 G, 11 ms half-sine pulse)
✓Vibration: Lloyd’s ENV2 test #1
✓The next generation 505D front panel mount user configurable steam turbine digital governor control with advanced integrated multilingual interface HMI screen.
✓The new 505D builds on the robust and reliable standard setting 505 platform trusted globally now with expanded communication protocols, intelligent/adaptive control algorithms, and advance service tools with data log and RemoteView monitor and control.
✓This model is a high voltage 88-264 Vac or 90-150 Vdc power input and is rated for Class 1, Div.
✓2 standard location.
✓designed screens, algorithms, and event recorders to simplify use in controlling industrial steam turbines or turbo-expanders, driving generators, compressors, pumps, or industrial fans.
✓This new 505 model is a panel mount, AC/DC version for standard location environment conditions.

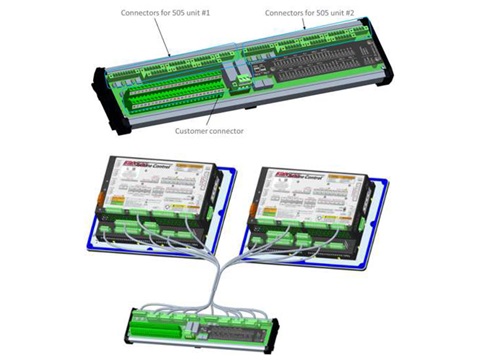

✓Use our convenient old 505 to new 505D retrofit wiring kit 5404-1801.
